FMT 12085 F20 14 UN MT8

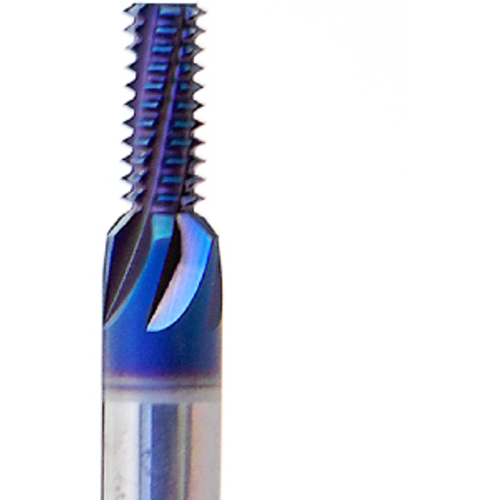

Thread Mill; 7/16|7/8 - 14 × 3.3″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | 7/16|7/8 | Applicable Material | | General Purpose | |
| Threads per Inch (TPI) | 14 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8.509 mm | Cutting Position | Internal |
| Functional Length (LF) | 20.83 mm | Series/List # | FMT |
| Overall Length (OAL) | 3.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 22.1 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Application | FAST MILL THREAD |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.2500
