FMT 08052 F11 28 UN MT8

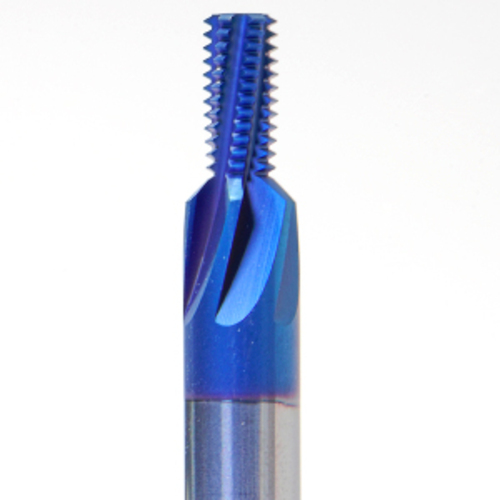

Thread Mill; 1/4 - 28 ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | 1/4 | Application | FAST MILL THREAD |
| Threads per Inch (TPI) | 28 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5.207 mm | Cutting Position | Internal |
| Functional Length (LF) | 11.18 mm | Series/List # | FMT |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 12.19 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.094
