FMT 12082 G17 24 UN MT8

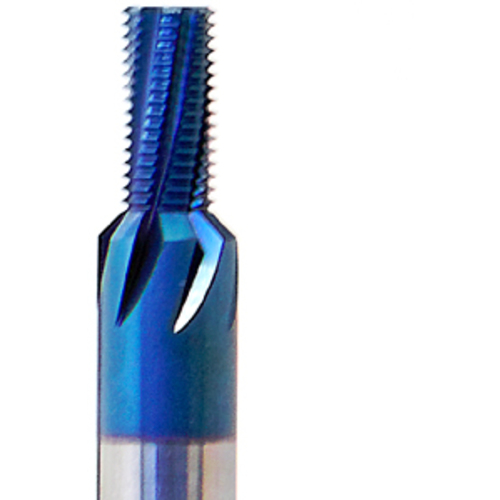

Thread Mill; 3/8|11/16|5/8|9/16 - 24 ; 12 mm Shank Dia. × 3.3″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | 3/8|11/16|5/8|9/16 | Application | FAST MILL THREAD |
| Threads per Inch (TPI) | 24 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8.204 mm | Cutting Position | Internal |
| Functional Length (LF) | 17.53 mm | Series/List # | FMT |
| Overall Length (OAL) | 3.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 7 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 18.8 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.25
