FMT 16116 F26 12 UN MT8

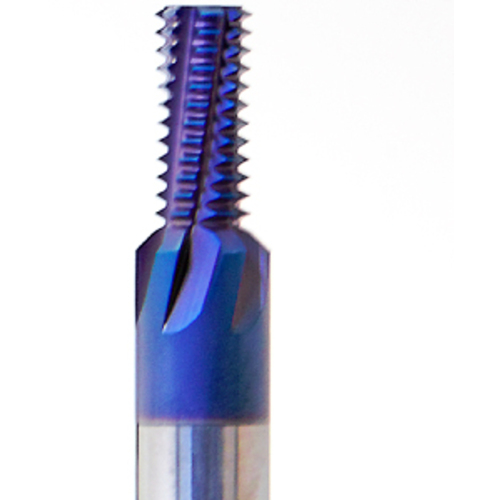

Thread Mill; 9/16|1 - 12 ; 16 mm Shank Dia. × 4.1″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | 9/16|1 | Application | FAST MILL THREAD |
| Threads per Inch (TPI) | 12 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 11.608 mm | Cutting Position | Internal |
| Functional Length (LF) | 26.42 mm | Series/List # | FMT |
| Overall Length (OAL) | 4.1″ | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 28.19 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.59
