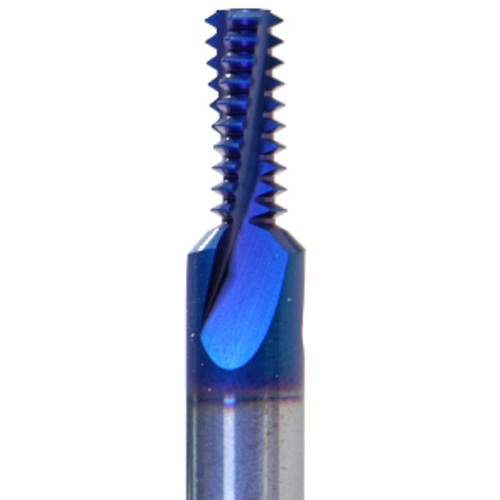

MTH 08057 C14 18UN THREAD MILL
Thread Mill; 11/16|5/16|5/8|9/16 - 18 ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; MT11 ; Series MTH
| Thread Size | 11/16|5/16|5/8|9/16 | Applicable Material | | General Purpose | |
| Threads per Inch (TPI) | 18 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 5.7 mm | Series/List # | MTH |
| Functional Length (LF) | 14.8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2-1/2″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Corner Chamfer Width (CHW) | 15.7 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Application | MILL THREAD SOLID CARBIDE HARDCUT |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.080
