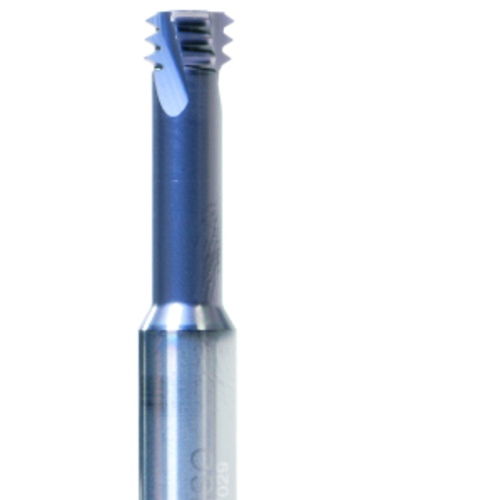

MTSH 08078 C23 1.5 ISO THREAD MILL
Thread Mill; 2xD × 1.5 mm ; 8 mm Shank Dia. × 64 mm OAL ; Carbide ; MT9 ; Series MTSH
| Thread Size | 2xD | Application | MILL THREAD SOLID CARBIDE HARDCUT |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Cast Iron | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 7.8 mm | Series/List # | MTSH |
| Functional Length (LF) | 23 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | MT9 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Israel |
