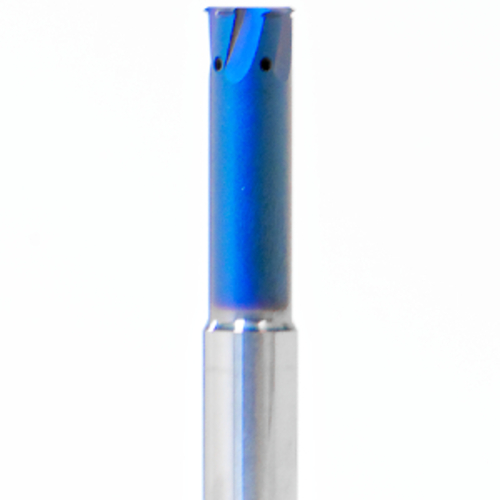

MTI 1212 E39 A60 MT8 THREAD MILL
Thread Mill; 14 mm × 0.8 mm - 1.5 mm , 1 mm - 1.75 mm - 14-28,16-32 ; 12 mm Shank Dia. × 3.3″ OAL ; Carbide ; TiAlN ; MT8 ; Series MTI
| Thread Size | 14 mm | Coating | TiAlN |
| Thread Pitch (TP) | 0.8 mm - 1.5 mm , 1 mm - 1.75 mm | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 14-28,16-32 | Applicable Material | | General Purpose | |
| Thread Standard | 60-DEG PART PROF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Position | External|Internal |
| Cutting Diameter (DC) | 12 mm | Series/List # | MTI |
| Functional Length (LF) | 39.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 3.3″ | Grade | MT8 |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Israel |
