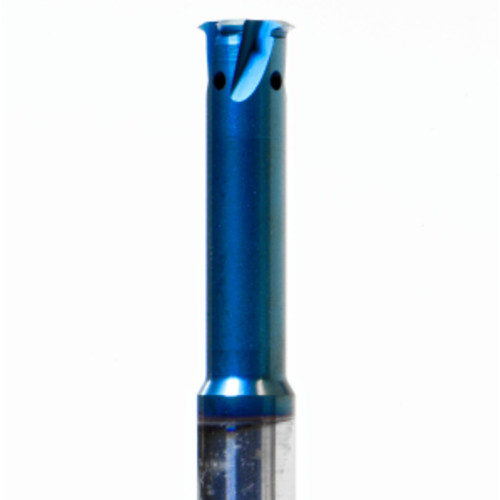

MTI 0808 D28 A60 MT8 THREAD MILL
Thread Mill; 9 mm × 0.4 mm - 0.8 mm , 0.5 mm - 0.8 mm - 28-56,32-64 ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; MT8 ; Series MTI
| Thread Size | 9 mm | Coating | TiAlN |
| Thread Pitch (TP) | 0.4 mm - 0.8 mm , 0.5 mm - 0.8 mm | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 28-56,32-64 | Applicable Material | | General Purpose | |
| Thread Standard | 60-DEG PART PROF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | External|Internal |
| Cutting Diameter (DC) | 8 mm | Series/List # | MTI |
| Functional Length (LF) | 27.9 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2-1/2″ | Grade | MT8 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Israel |
