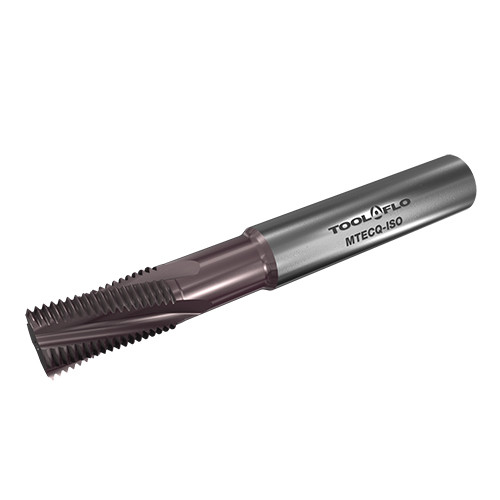

MTECQ 1010D301.5ISO AC22
Thread Mill; =>13 × 1.5 mm ; 10 mm Shank Dia. × 73 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB

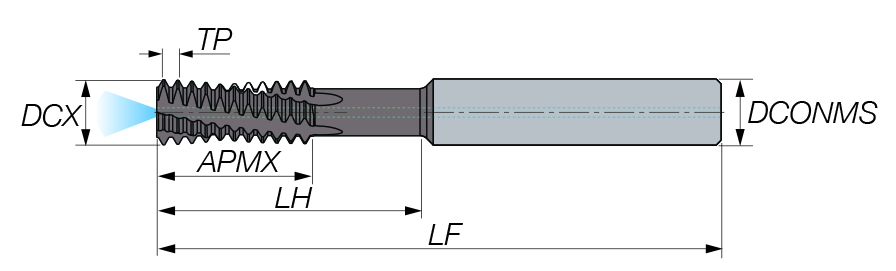

| Thread Pitch (TP) | 1.5 mm | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | INT |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Usable Length (LU) | 1.1811″ |
| Cutting Diameter (DC) | 0.394″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2.874″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 0.7087″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide Threading Endmills with Internal Coolant Hole and a Reduced Diameter Neck for Deep Internal ISO Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.16
