MTECI 1212E40 A60 AC22
| Thread Size | =>16 | Pitch Internal | 2.0-3.0 mm |
| Thread Standard | ISO | Pitch External | 1.75-2.5 mm |

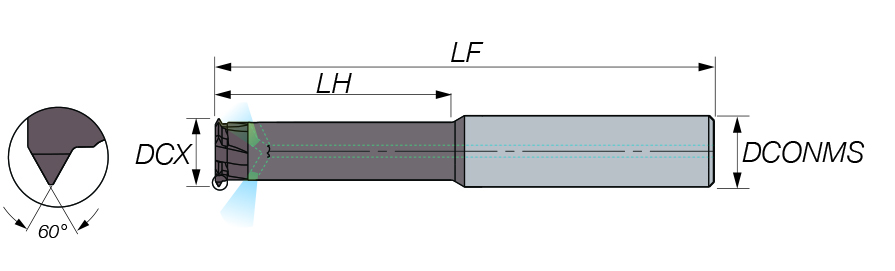

| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 12 mm | Cutting Position | BOTH |
| Functional Length (LF) | 39 mm | Usable Length (LU) | 40 mm |
| Overall Length (OAL) | 84 mm | Series/List # | MTB |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Grade | AC22 |
| Shank Type | Round | Depth of Cut Maximum (APMX) | 1.3 mm |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Pitch TPI Internal (TPI Int) | 13-8 | Thread Form Type (THFT) | M60 |
| Pitch TPI External (TPI Ext) | 15-8 |
Product Features
| Family Description | 60° Partial Profile Solid Carbide Thread Mills for Internal and External Threads | Country of Origin | Israel |
