MTECD 1009D26 1.75ISO AC22

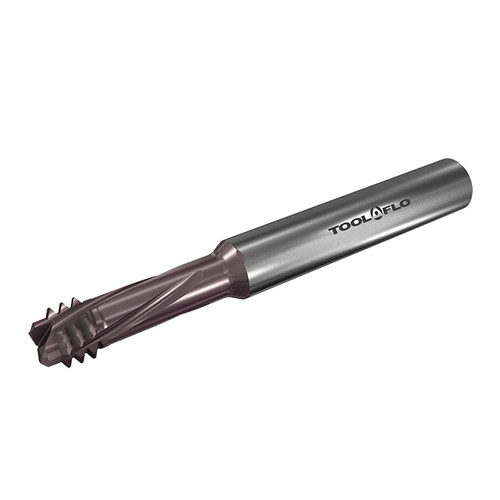

Thread Mill; M12 × 1.75 mm ; 0.394″ Shank Dia. × 2.874″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | M12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.75 mm | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Usable Length (LU) | 1.0236″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.354″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 2.874″ | Corner Chamfer Width (CHW) | 0.024″ |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Drilling | Internal Thread Milling | |
Product Features
| Family Description | Small Diameter Short Left-Hand Cut Solid Carbide Endmills for Internal ISO Profile Drilling, Threading and Chamfering | Country of Origin | Israel |
Shipping Info
Package Weight
0.16
