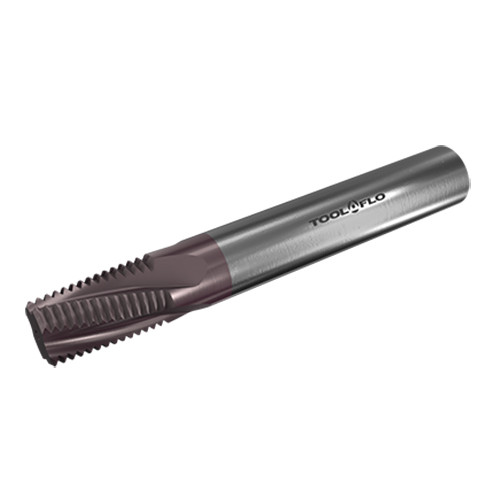

MTECB 1212D23 16PG AC22
Thread Mill; Pg 21, 29,36, 42, 48 × 1.588 mm - 16 ; 12 mm Shank Dia. × 84 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | Pg 21, 29,36, 42, 48 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 1.588 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 16 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 84 mm | Depth of Cut Maximum (APMX) | 23 mm |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | PG |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Hole for External and Internal PG Full Profile (DIN 40430) used for Electrical Connectors | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
