MTECB 1009C28 1.75ISO AC22

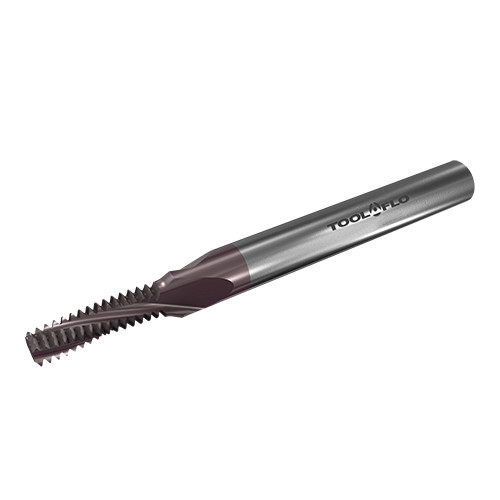

Thread Mill; M12 × 1.75 mm ; 10 mm Shank Dia. × 73 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | M12 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Pitch (TP) | 1.75 mm | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 28.9 mm |
| Cutting Diameter (DC) | 9 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 73 mm | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 28.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide Internal Threading Endmills with Coolant Hole for ISO Thread Profile | Country of Origin | Israel |
