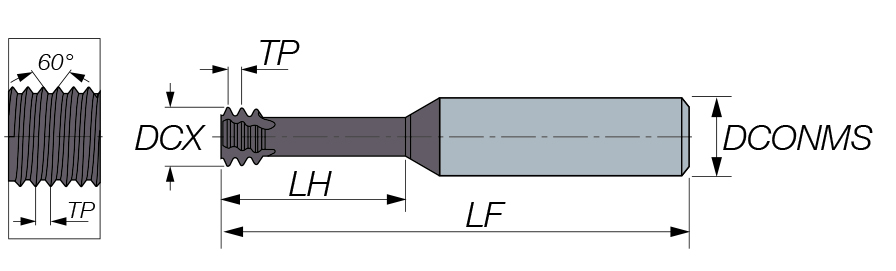

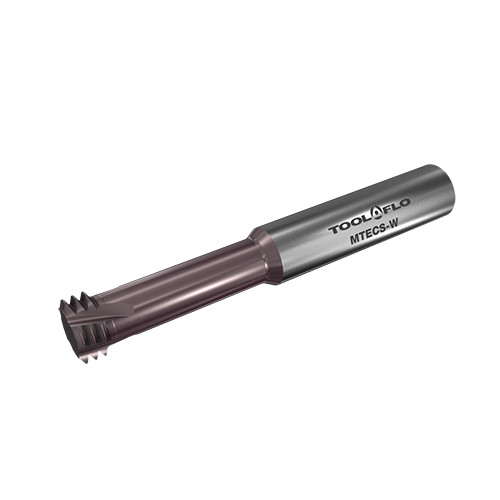

MTECS 1212D37 14W AC22
Thread Mill; G 1/2-7/8 - 14 ; 12 mm Shank Dia. × 84 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | G 1/2-7/8 | Flute Helix Angle (FHA) | 0 Degrees |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 37 mm |
| Cutting Diameter (DC) | 12 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 84 mm | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 4.72 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Small Diameter Solid Carbide Internal and External Whitworth, BSP, and BSF Profile Threading Endmills with Short Contact Area | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
