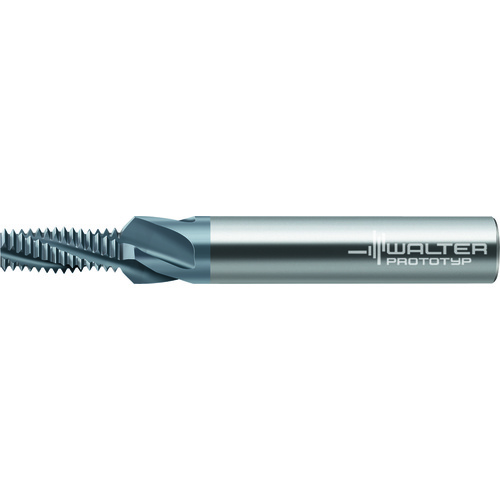

M12x1.75 4 Flute Carbide TiCN Thread Mill Axial Co
Thread Mill; M12 × 1.75 mm ; 14 mm Shank Dia. × 83 mm OAL ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Thread Size | M12 | Flute Count (NOF) | 4 |
| Thread Pitch (TP) | 1.75 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | Metric | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Coating | TiCN |
| Cutting Diameter (DC) | 9.9 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 26.75 mm | Usable Length (LU) | 24.5 mm |
| Overall Length (OAL) | 83 mm |
Product Features
| Family Description | H5055016-M12 | Country of Origin | Germany |
Shipping Info
Package Weight
0.307
