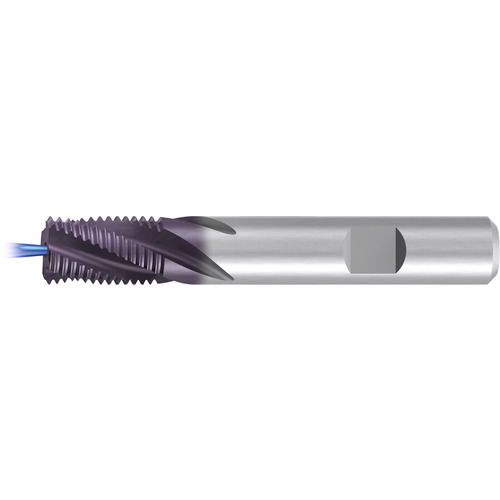

Thread Mill; M6 × 1 mm × 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiCN
Thread Mill; M6 × 1 mm ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiCN ; Series GFR35106
| Thread Size | M6 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | Metric | Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.189″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Series/List # | GFR35106 |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Depth of Cut Maximum (APMX) | 0.491″ |
| Coating | TiCN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • For production of internal threads. • Axial coolant fed channel for enhanced chip removal rates • This tool is for a specific size and pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
