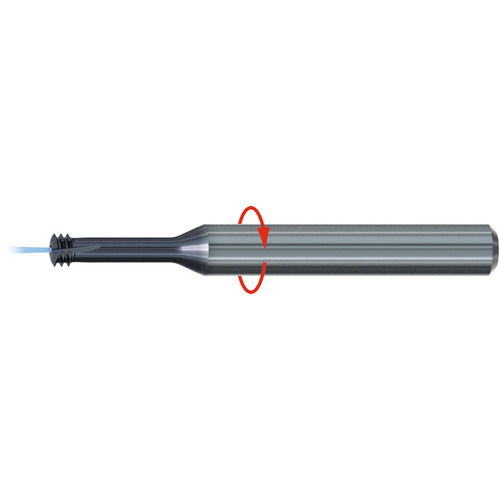

Thread Mill; #6 - 32 × 3 mm Shank Dia. × 1.535″ OAL ; Carbide ; TiAlN
Thread Mill; #6 - 32 ; 3 mm Shank Dia. × 1.535″ OAL ; Carbide ; AlTiN ; Series GF26A729
| Thread Size | #6 | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 32 | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Thread Standard | UNC | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 0.287″ |
| Cutting Diameter (DC) | 0.106″ | Series/List # | GF26A729 |
| Overall Length (OAL) | 1.535″ | Length Group | 2xD |
| Flute Count (NOF) | 3 | Tool Type | Thread Mill |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
| Coating | AlTiN |
Product Features
| Remarks | • Solid carbide circular thread mill with left hand flute design for additional stability. • Three tooth design with roughing and finishing in a single profile. • Full bottoming threads to within 1 pitch • For aerospace and exotic materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
