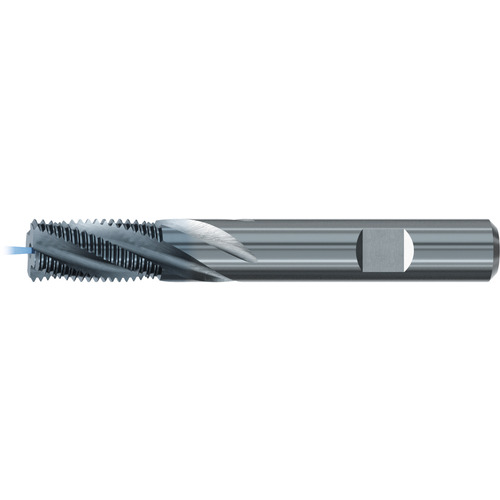

Thread Mill; 1/2″ - 18 × 10 mm Shank Dia. × 70 mm OAL ; Carbide ; TiCN ; Series A214524
Thread Mill; 1/2″ - 18 ; 10 mm Shank Dia. × 70 mm OAL ; Carbide ; TiCN ; Series GF162316
| Thread Size | 1/2″ | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/2″ | Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral |
| Cutting Diameter (DC) | 9.9 mm | Usable Length (LU) | 20.4 mm |
| Overall Length (OAL) | 70 mm | Series/List # | GF162316 |
| Flute Count (NOF) | 4 | Length Group | Long |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiCN |
Product Features
| Remarks | • Thread mills with standard thread profile (for different thread sizes but for one pitch only) • For production of internal threads. • In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
