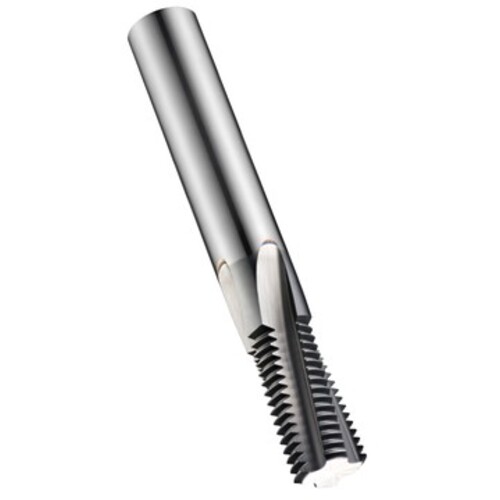

1/8-28 BSP Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J2806.0-28
Additional Tariff Surcharge of 8 %
| Threads per Inch (TPI) | 28 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | 1/8″ | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | BSP | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 6 mm | Cutting Position | External |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 15 mm |
| Flute Count (NOF) | 3 | Series/List # | J280 |
| Coolant Supply Property (CSP) | External | Standard | DIN 6535 HA |
| Shank Type | Round | Length Group | 1.5xD |
| Coating | AlCrN |
Product Features
| Family Description | E-code # J2806.0-28 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
