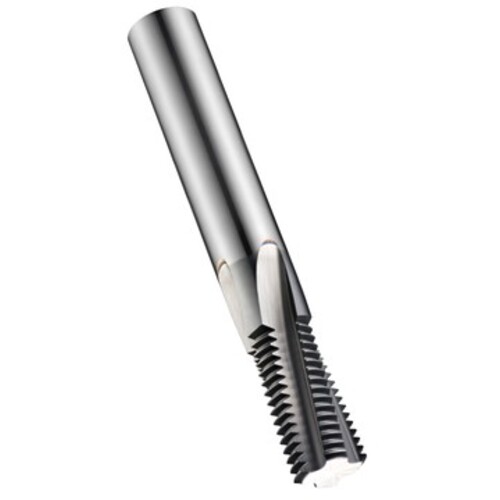

1/4-19 BSP Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J28010.0-19
Additional Tariff Surcharge of 8 %
| Threads per Inch (TPI) | 19 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | BSP | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 10 mm | Cutting Position | External |
| Overall Length (OAL) | 72 mm | Usable Length (LU) | 20 mm |
| Flute Count (NOF) | 4 | Series/List # | J280 |
| Coolant Supply Property (CSP) | External | Standard | DIN 6535 HA |
| Shank Type | Round | Length Group | 1.5xD |
| Coating | AlCrN |
Product Features
| Family Description | E-code # J28010.0-19 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
