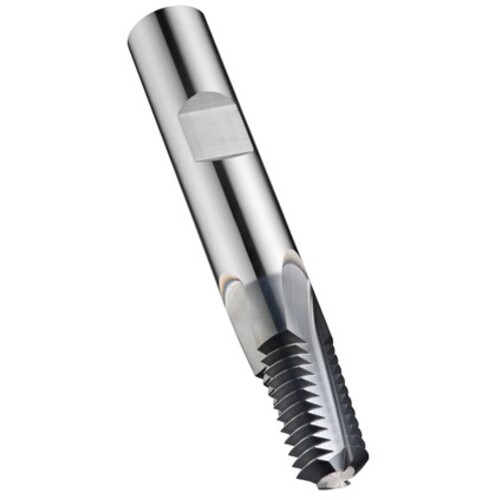

1/4-18 ot 3/8-18 NPT Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J2609.9-18
Thread Mill; 1/4 - 18 | 3/8 - 18 - 18 ; 10 mm Shank Dia. × 66 mm OAL ; Carbide ; AlCrN ; Series J260
Additional Tariff Surcharge of 8 %
| Thread Size | 1/4 - 18 | 3/8 - 18 | Coating | AlCrN |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | 3/8″ | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | NPT | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 9.9 mm | Cutting Position | Internal |
| Overall Length (OAL) | 66 mm | Usable Length (LU) | 15.92 mm |
| Flute Count (NOF) | 3 | Series/List # | J260 |
| Coolant Supply Property (CSP) | External | Standard | DIN 6535 HB |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # J2609.9-18 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
