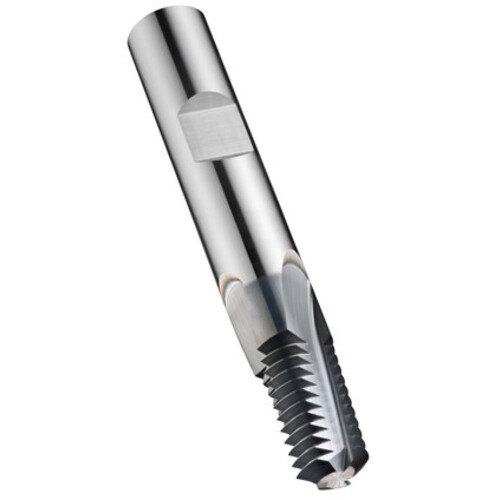

1-11-1/2 or 2-11-1/2 NPT Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J26019.9-11.5
Additional Tariff Surcharge of 8 %
| Threads per Inch (TPI) | 11.5 | Coating | AlCrN |
| Thread Diameter Size (TDZ) | 1″ | 2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Standard | NPT | Flute Helix Angle (FHA) | 10 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 19.9 mm | Flute Type | Spiral Flute |
| Overall Length (OAL) | 92 mm | Cutting Position | Internal |
| Flute Count (NOF) | 5 | Usable Length (LU) | 27.12 mm |
| Coolant Supply Property (CSP) | External | Series/List # | J260 |
| Shank Type | Weldon | Standard | DIN 6535 HB |
Product Features
| Family Description | E-code # J26019.9-11.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
