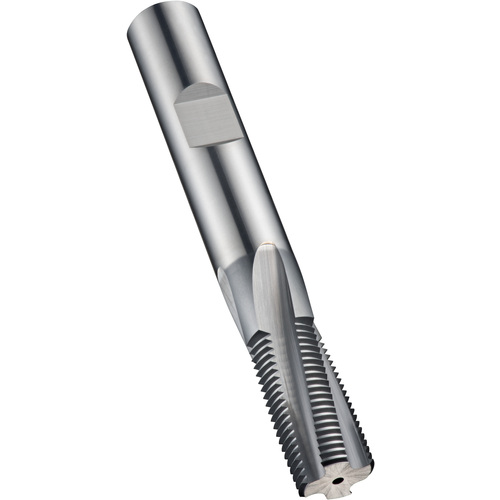

1/4-28 UNF Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J2454.8-28
Thread Mill; 1/4 - 28 - 28 ; 6 mm Shank Dia. × 57 mm OAL ; Carbide ; AlCrN ; Series J245
Additional Tariff Surcharge of 8 %
| Thread Size | 1/4 - 28 | Coating | AlCrN |
| Threads per Inch (TPI) | 28 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 4.8 mm | Cutting Position | Internal |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 14 mm |
| Flute Count (NOF) | 3 | Series/List # | J245 |
| Coolant Supply Property (CSP) | Coolant Thru | Standard | DIN 6535 HB |
| Shank Type | Weldon | Length Group | 2xD |
Product Features
| Family Description | E-code # J2454.8-28 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
