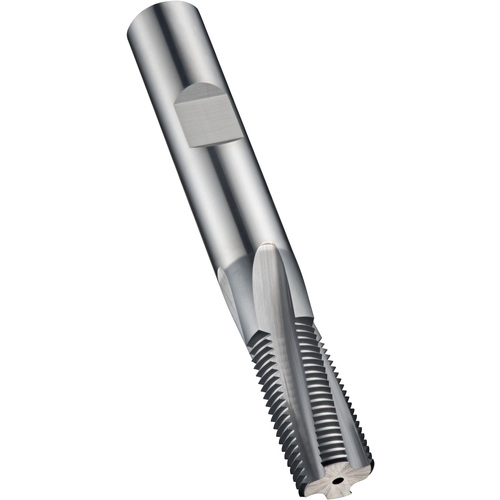

3/4-10 UNC Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J23514.0-10
Thread Mill; 3/4 - 10 - 10 ; 14 mm Shank Dia. × 83 mm OAL ; Carbide ; AlCrN ; Series J235
Additional Tariff Surcharge of 8 %
| Thread Size | 3/4 - 10 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Threads per Inch (TPI) | 10 | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Edge Material | Carbide |
| Thread Standard | UNC | Flute Type | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 14 mm | Usable Length (LU) | 32 mm |
| Overall Length (OAL) | 83 mm | Series/List # | J235 |
| Coolant Supply Property (CSP) | Coolant Thru | Standard | DIN 6535 HB |
| Shank Type | Weldon | Length Group | 2xD |
| Coating | AlCrN |
Product Features
| Family Description | E-code # J23514.0-10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
