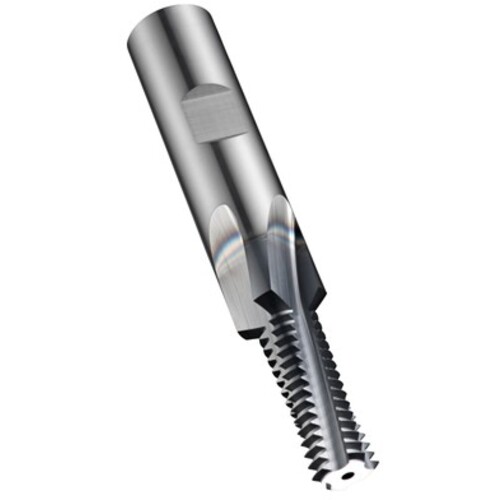

M16x2.0 Metric Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J20513.6X2.0
Thread Mill; M16 2.0 × 2 mm ; 18 mm Shank Dia. × 92 mm OAL ; Carbide ; AlCrN ; Series J205
Additional Tariff Surcharge of 8 %
| Thread Size | M16 × 2.0 | Coating | AlCrN |
| Thread Pitch (TP) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | M16 | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 13.6 mm | Cutting Position | Internal |
| Overall Length (OAL) | 92 mm | Usable Length (LU) | 34 mm |
| Flute Count (NOF) | 4 | Series/List # | J205 |
| Coolant Supply Property (CSP) | Coolant Thru | Standard | DIN 6535 HB |
| Shank Type | Weldon | Length Group | 2xD |
Product Features
| Family Description | E-code # J20513.6X2.0 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
