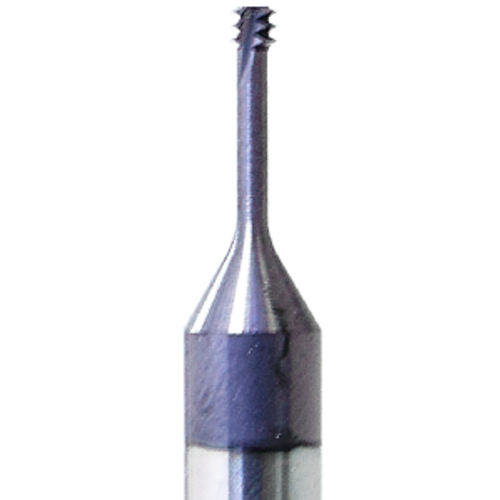

MTS0250C3840UNMT7 5-40
Thread Mill; #5-6 × 0.40 40 - 40 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTS
| Thread Size | #5-6 | Coating | TiAlN |
| Thread Pitch (TP) | 0.40 40 | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 40 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Position | Internal |
| Cutting Diameter (DC) | 0.096″ | Series/List # | MTS |
| Functional Length (LF) | 0.38″ | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2-1/2″ | Grade | MT7 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.05
