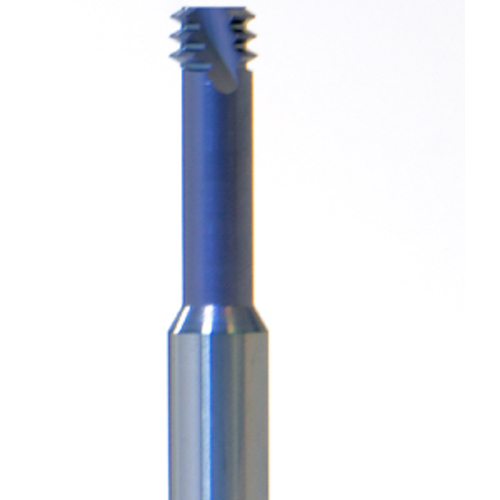

MTSH 12114 C34 11 UN MT9
Thread Mill; 2xD|5/8 - 11 ; 12 mm Shank Dia. × 84 mm OAL ; Carbide ; MT9 ; Series MTSH
| Thread Size | 2xD|5/8 | Application | MILL THREAD SOLID CARBIDE HARDCUT |
| Threads per Inch (TPI) | 11 | Applicable Material | | Cast Iron | |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 11.4 mm | Series/List # | MTSH |
| Functional Length (LF) | 34.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 84 mm | Grade | MT9 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.2
