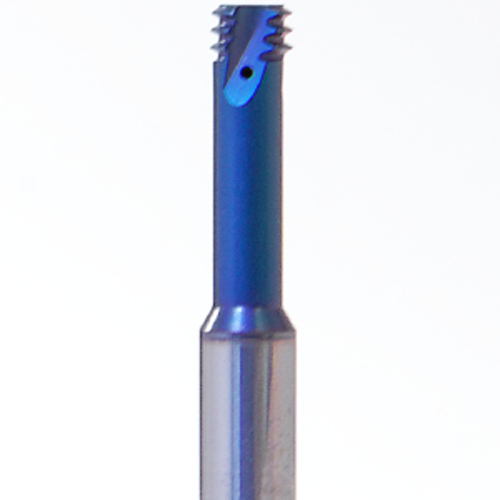

MTS 10092 C30 1.75 MJ MT8 THRD MILL
Thread Mill; 2.5xD1 × 1.75 mm ; 10 mm Shank Dia. × 2.9″ OAL ; Carbide ; TiAlN ; MT8 ; Series MTS
| Thread Size | 2.5xD1 | Coating | TiAlN |
| Thread Pitch (TP) | 1.75 mm | Application | MINI MILL THREAD |
| Thread Standard | MJ (ISO 5855) | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 9.2 mm | Cutting Position | Internal |
| Functional Length (LF) | 30 mm | Series/List # | MTS |
| Overall Length (OAL) | 2.9″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.7
