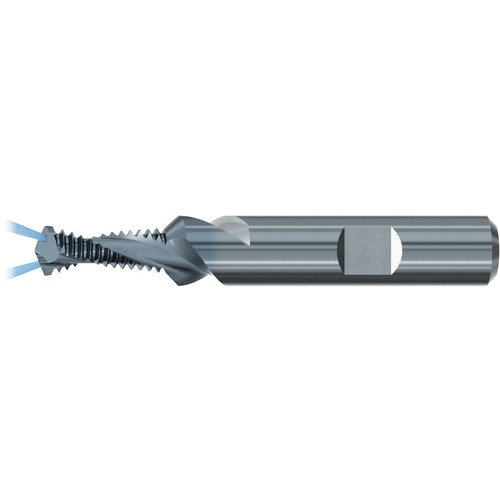

M 8 2XD BGF THRILLER TICN
Thread Mill; M8 × 1.25 mm ; 10 mm Shank Dia. × 74 mm OAL ; Carbide ; TiCN ; Series GF432206
| Thread Size | M8 | Application | | Chamfering | Drilling | Internal Thread Milling | |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M8 | Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral |
| Cutting Diameter (DC) | 6.5 mm | Usable Length (LU) | 17.6 mm |
| Overall Length (OAL) | 74 mm | Series/List # | GF432206 |
| Flute Count (NOF) | 2 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN | Point Angle (SIG) | 140 Degrees |
Product Features
| Remarks | • Combination drill, countersink & thread mill. Coolant fed design. • No pre-drilled tap hole necessary • Tool for a specific dimension with corrected thread profile • Combine three operations into one tool. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
