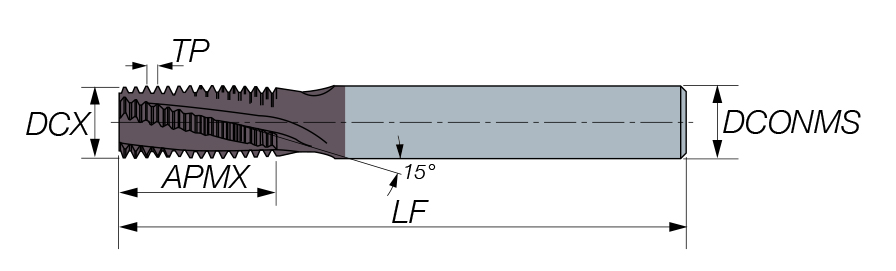

MTEC 0250C06 24UN AC22
Thread Mill; - - 24 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 24 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Position | Internal |
| Cutting Diameter (DC) | 0.2″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.6″ |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid Carbide Threading Endmills used for Internal UN ThreadProfile | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
