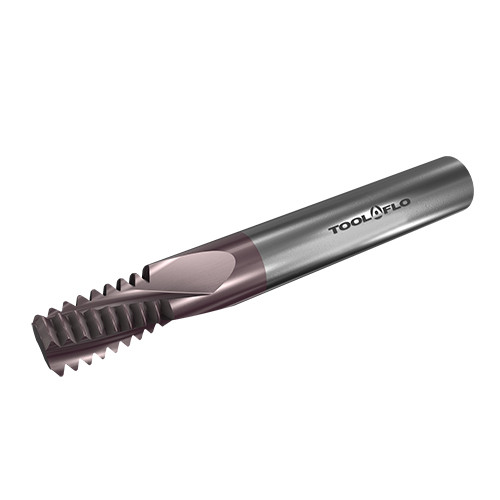

MTEC E 1212E21 20UN AC22
| Threads per Inch (TPI) | 20 Threads/" | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Cutting Position | EXT |
| Cutting Diameter (DC) | 0.472″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 3.307″ | Grade | AC22 |
| Flute Count (NOF) | 5 | Depth of Cut Maximum (APMX) | 0.827″ |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | SOLID THREADMILL UNTHREAD | Country of Origin | Israel |
Shipping Info
Package Weight
0.27
