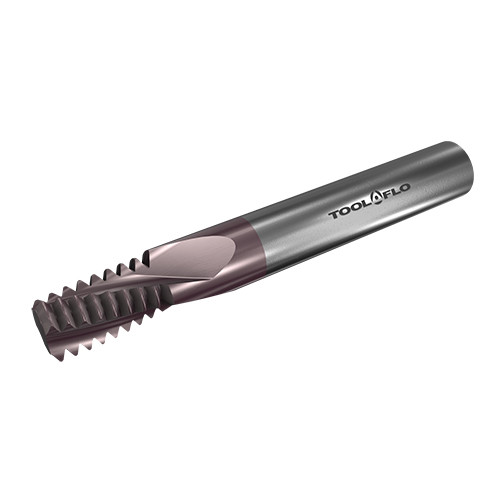

MTEC 1615E37 14UN AC22

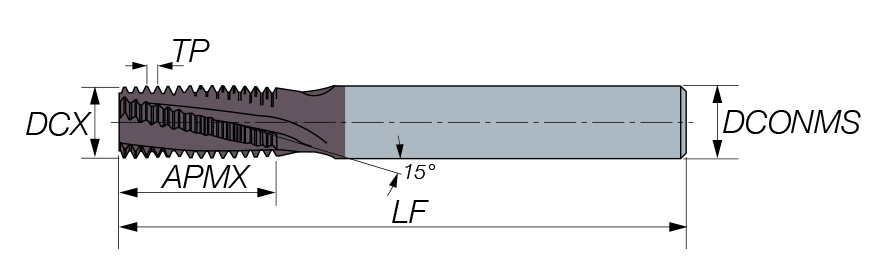

Thread Mill; - x 1.814 mm - 14 ; 16 mm Shank Dia. × 100 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.814 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 15 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 100 mm | Depth of Cut Maximum (APMX) | 37.2 mm |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid Carbide Threading Endmills used for Internal UN ThreadProfile | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
