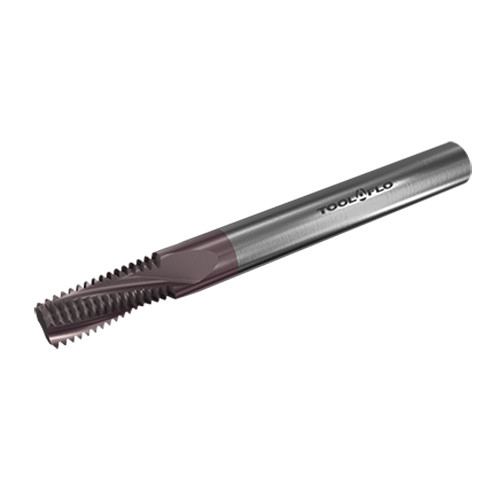

MTEC 0606C9 28W AC22
Thread Mill; G1/8″ - 28 ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | G1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 28 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | BOTH |
| Cutting Diameter (DC) | 6 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 9.5 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Solid Carbide Threading Endmills used for Internal or External Whitworth/BSF/BSP Thread Profiles | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
