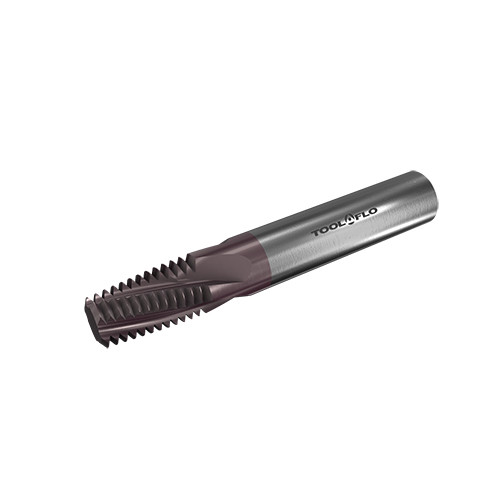

MTEC 0606C9 27NPTF AC22
| Thread Size | 1/16″ NPTF | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.94 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 27 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 6 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 58 mm | Depth of Cut Maximum (APMX) | 9.9 mm |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | NPTF60 |
| Application | | External Thread Milling | Internal Thread Milling | |
Product Features
| Family Description | Solid Carbide Threading Endmills for External or Internal NPTF Thread Profile | Country of Origin | Israel |
