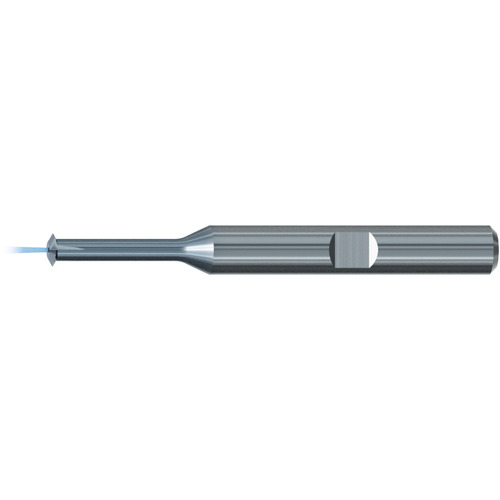

 ZGF-3xd1-IKZ-HB-TICN/(3D) ZGF-3xd1-IKZ-HB-TICN_1_Enlarge.jpg)
 ZGF-3xd1-IKZ-HB-TICN/(3D) ZGF-3xd1-IKZ-HB-TICN_Enlarge.jpg)
Thread Mill; 3/8″ - 16 × 5/16″ Shank Dia. × 2-3/4″ OAL ; Carbide ; TiCN ; Series A504524
Thread Mill; 3/8″ - 16 ; 5/16″ Shank Dia. × 2-3/4″ OAL ; Carbide ; TiCN ; Series GFS83106
| Thread Size | 3/8″ | Coating | TiCN |
| Threads per Inch (TPI) | 16 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | UNC | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Flute Type | Straight |
| Cutting Diameter (DC) | 0.303″ | Series/List # | GFS83106 |
| Overall Length (OAL) | 2-3/4″ | Length Group | 3xD |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 1-1/8″ |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Single plane solid carbide circular thread mill. • One tool can thread more than one thread size and pitch. • Full bottoming threads to within 1 pitch • Eliminate the need for multiple tool holder pockets | Country of Origin | Germany |
Shipping Info
Package Weight
0.098
