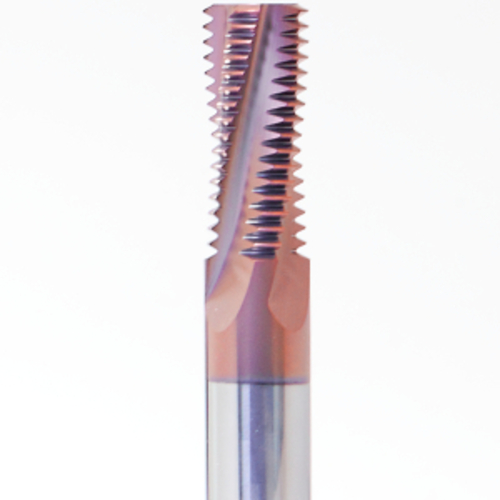

MT 1616 D38 11 W THREAD MILL
Thread Mill; G1-G3 - 11 ; 16 mm Shank Dia. × 4.1″ OAL ; Carbide ; TiAlN ; MT7 ; Series MT
| Thread Size | G1-G3 | Coating | TiAlN |
| Threads per Inch (TPI) | 11 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | G55 (BSF,BSP) | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 16 mm | Cutting Position | Internal |
| Functional Length (LF) | 38.1 mm | Series/List # | MT |
| Overall Length (OAL) | 4.1″ | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
