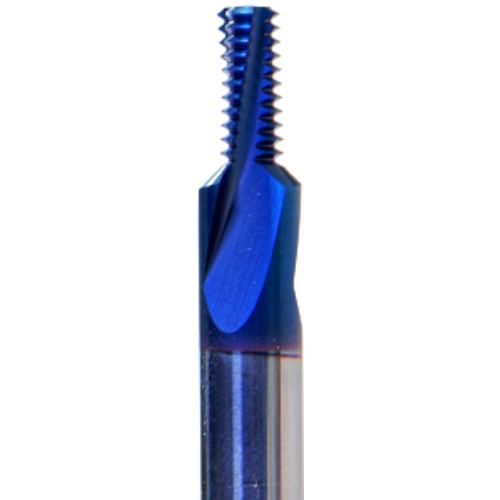

MTH 0604 C9 0.8 ISO THREAD MILL
Thread Mill; M5 × 0.8 mm ; 6 mm Shank Dia. × 2.3″ OAL ; Carbide ; MT11 ; Series MTH
| Thread Size | M5 | Applicable Material | | General Purpose | |
| Thread Pitch (TP) | 0.8 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 5.2 mm | Series/List # | MTH |
| Functional Length (LF) | 9.2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2.3″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Corner Chamfer Width (CHW) | 9.8 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Application | MILL THREAD SOLID CARBIDE HARDCUT |
Product Features
| Country of Origin | Israel |
