MTZ 1009 C20 1.75 ISO

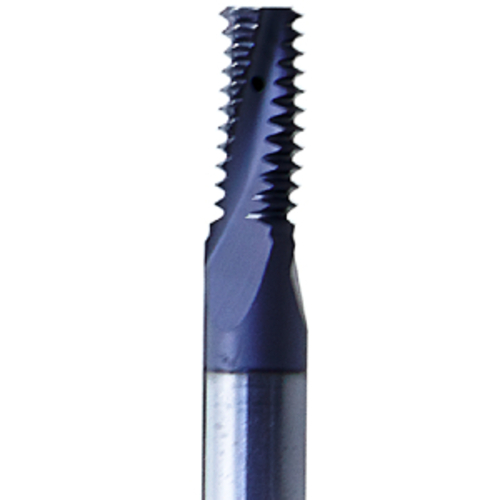

Thread Mill; 12 × 1.75 mm ; 10 mm Shank Dia. × 2.9″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTZ
| Thread Size | 12 | Coating | TiAlN |
| Thread Pitch (TP) | 1.75 mm | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | ISO | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 9 mm | Cutting Position | Internal |
| Functional Length (LF) | 20.1 mm | Series/List # | MTZ |
| Overall Length (OAL) | 2.9″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
