MTZ 08077 C20 14UN

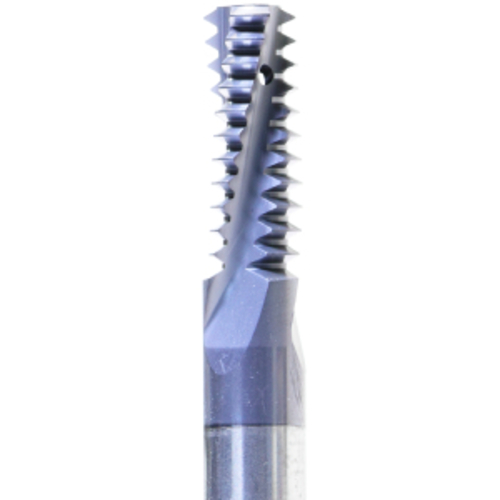

Thread Mill; 7/16 - 14 ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTZ
| Thread Size | 7/16 | Coating | TiAlN |
| Threads per Inch (TPI) | 14 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | UN | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 7.7 mm | Cutting Position | Internal |
| Functional Length (LF) | 20.9 mm | Series/List # | MTZ |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
