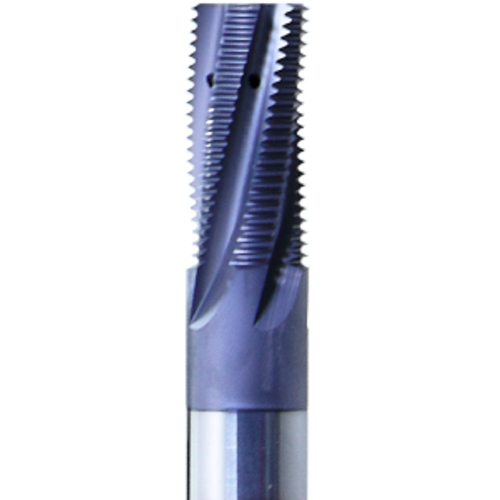

MTZ 1616 E33 1.5 ISO
Thread Mill; 20 × 1.5 mm ; 16 mm Shank Dia. × 101 mm OAL ; Carbide ; TiAlN ; MT7 ; Series MTZ
| Thread Size | 20 | Coating | TiAlN |
| Thread Pitch (TP) | 1.5 mm | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | ISO | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 16 mm | Cutting Position | Internal |
| Functional Length (LF) | 33.8 mm | Series/List # | MTZ |
| Overall Length (OAL) | 101 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.57
