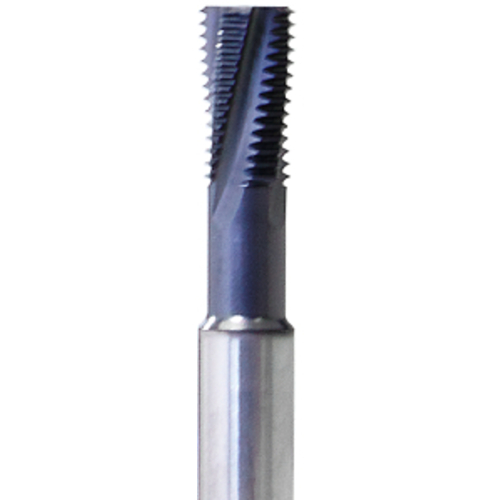

MTQ 1010 D30 20 UN MT7
Thread Mill; 0.47 - 20 ; 10 mm Shank Dia. × 2.9″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTQ
| Thread Size | 0.47 | Application | MILL THREAD SOLID CARBIDE |
| Threads per Inch (TPI) | 20 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 30.5 mm |
| Functional Length (LF) | 30.5 mm | Series/List # | MTQ |
| Overall Length (OAL) | 2.9″ | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiAlN |
Product Features
| Country of Origin | Israel |
