MTQ 1212 D34 1.5 ISO MT7

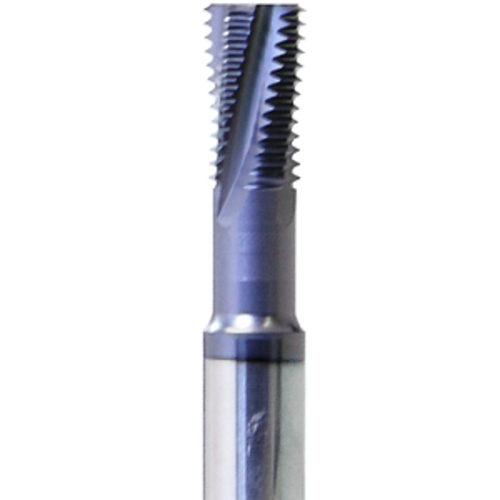

Thread Mill; 15 × 1.5 mm ; 12 mm Shank Dia. × 3.3″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTQ
| Thread Size | 15 | Application | MILL THREAD SOLID CARBIDE |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | General Purpose | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 12 mm | Usable Length (LU) | 34.5 mm |
| Functional Length (LF) | 19.5 mm | Series/List # | MTQ |
| Overall Length (OAL) | 3.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiAlN |
Product Features
| Country of Origin | Israel |
