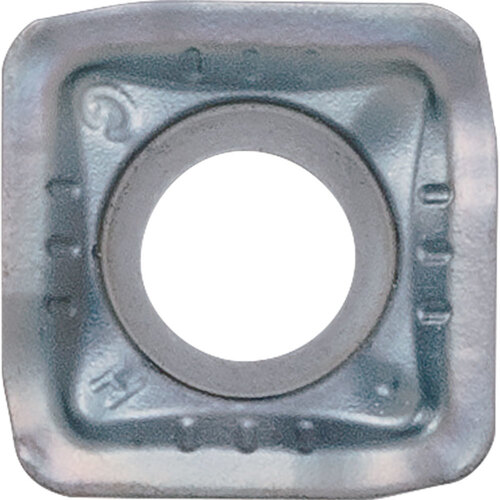

SCMT 170610GHI PR1535 Grade PVD Carbide, Indexable Drilling Insert
Drill Insert; 0.7047″ Length × 0.7047″ Width × 0.259″ Thickness × 0.705″ IC × 0.039″ Corner Radius ; 90 Degrees Included Angle ; Square ; Carbide ; MEGACOAT NANO ; PR1535 ; Series DRV

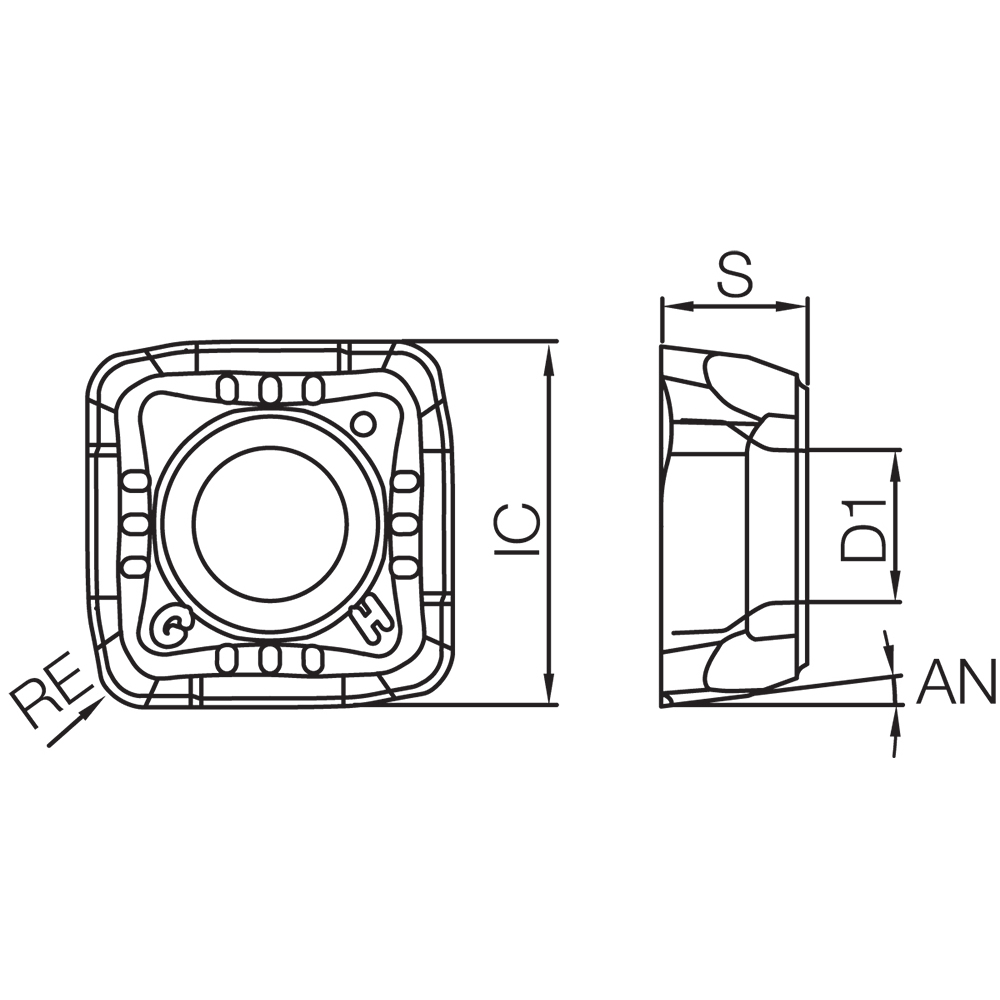

| Cutting Edge Length (L) | 0.7047″ | Application | Drilling |
| Insert Width (W1) | 0.7047″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.259″ | Chip Breaker Type | GH-I |
| Insert Included Angle (EPSR) | 90 Degrees | Series/List # | DRV |
| Inscribed Circle Diameter (IC) | 0.705″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.039″ | Number of Cutting Edges | 4 |
| Fixing Hole Diameter (D1) | 0.2717″ | Cutting Direction (HAND) | Neutral |
| Shape | Square | Insert Style | SCMT |
| Coating | MEGACOAT NANO | Insert Size | 170610 |
| Grade | PR1535 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.484
