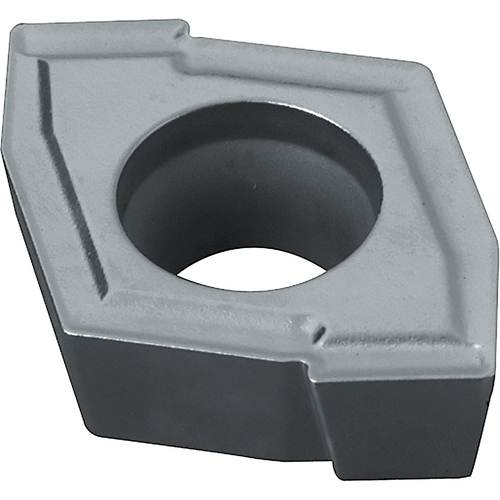

ZCMT 12T306 KW10 INSERT
Drill Insert; 0.563″ Length × 0.5039″ Width × 5/32″ Thickness × 0.0236″ Corner Radius ; Irregular ; Carbide ; Uncoated ; KW10 ; Series DRZ Magic Drill

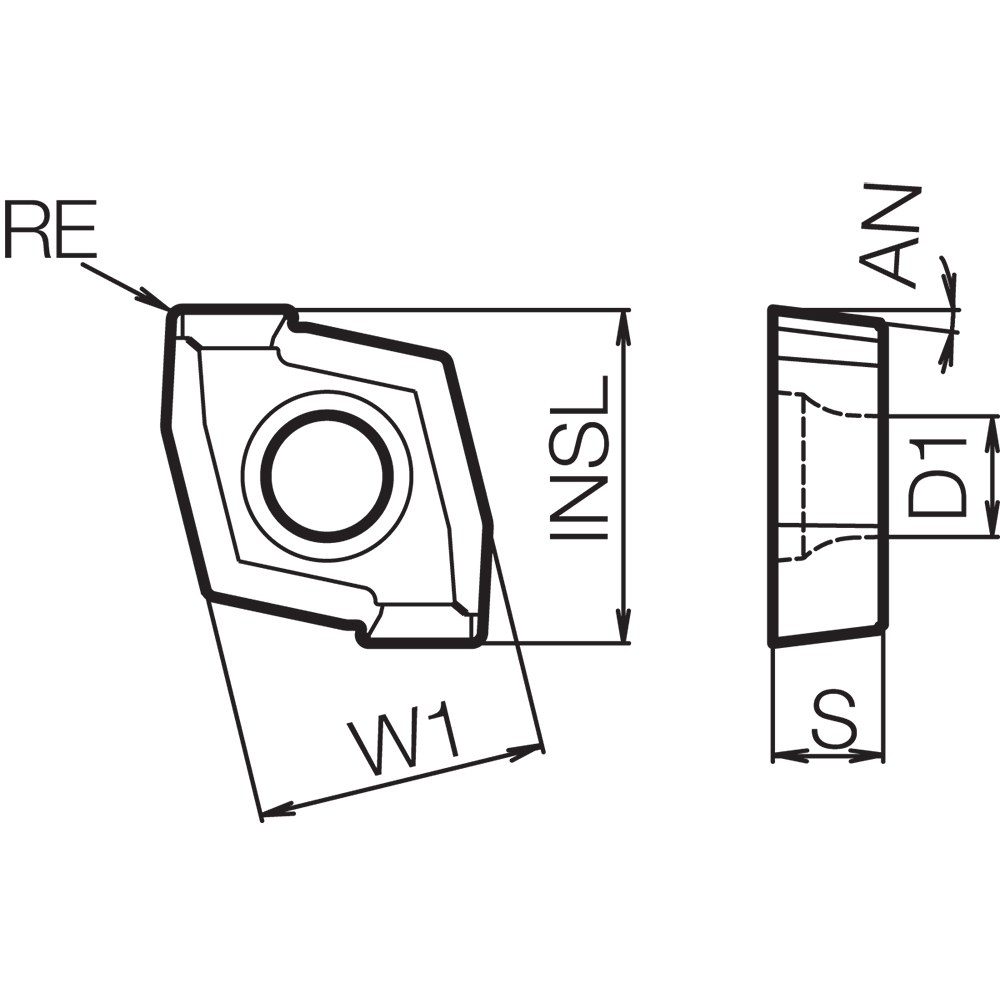

| Cutting Edge Length (L) | 0.563″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Insert Width (W1) | 0.5039″ | Series/List # | DRZ Magic Drill |
| Insert Thickness (S) | 5/32″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ | Number of Cutting Edges | 4 |
| Fixing Hole Diameter (D1) | 0.22″ | Measurement Type | Inch |
| Shape | Irregular | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Insert Style | ZCMT |
| Grade | KW10 | Insert Size | 12T306 |
| Application | Drilling |
Product Features
| Family Description | Alternate Manufacture # ZCMT12T306KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1885
