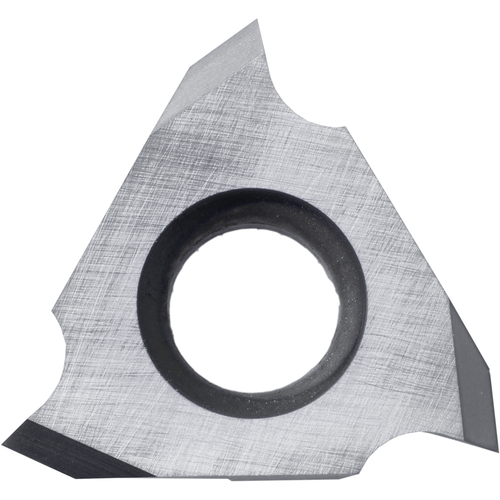

TTX 32R6000S KW10 Grade Uncoated Carbide, Indexable Threading Insert
| Thread Standard | Metric | UN | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.5 mm | Application | External Threading |
| Threads per Inch (TPI) | 56-48 | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Insert Thickness (S) | 1/8″ | Number of Teeth | 3 |
| Inscribed Circle Diameter (IC) | 3/8″ | Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 32 | Series/List # | KTTX |
| Grade | KW10 | Mounting Style | Screw |
| Coating | Uncoated | Measurement Type | | Inch | Metric | |
| Cutting Edge Material | Carbide | Insert Style | TTX |
| Cutting Position | External | Coating Process | Uncoated |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.134
