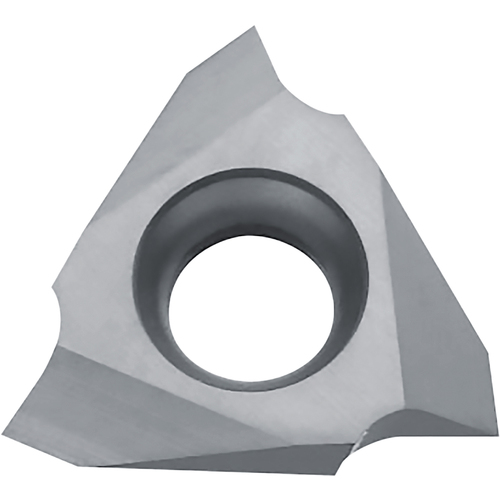

TT 32R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert
| Thread Standard | Metric | UN | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1 mm - 2.5 mm | Application | External Threading | Internal Threading |
| Threads per Inch (TPI) | 24-10 | 16-10 | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.004″ | Number of Teeth | 3 |
| Insert Thickness (S) | 1/8″ | Profile Included Angle (PNA) | 60 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | KTT |
| Insert Size | 32 | Mounting Style | Screw |
| Grade | KW10 | Measurement Type | | Inch | Metric | |
| Coating | Uncoated | Insert Style | TT |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Cutting Position | Internal & External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.099
