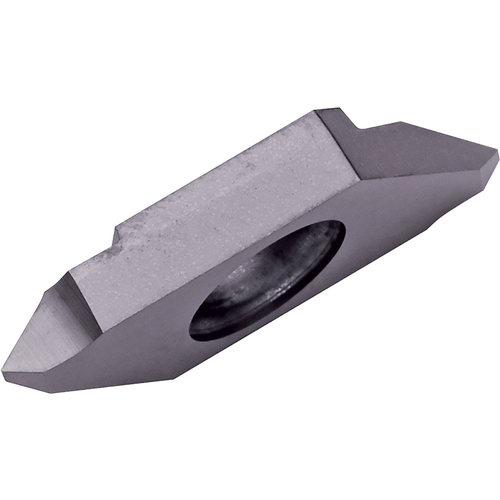

TKFT 12RB6000 PR1225 Grade PVD Carbide, Indexable Threading Insert
| Thread Standard | Metric | UN | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.2 mm - 0.6 mm | Application | External Threading |
| Threads per Inch (TPI) | 64-48 | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.002″ | Number of Teeth | 2 |
| Insert Thickness (S) | 0.343″ | Profile Included Angle (PNA) | 60 Degrees |
| Cutting Width (CW) | 0.0984″ | Series/List # | KTKF |
| Insert Size | 12 | Mounting Style | Screw |
| Grade | PR1225 | Measurement Type | | Inch | Metric | |
| Coating | MEGACOAT | Insert Style | TKFT |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Cutting Position | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.135
