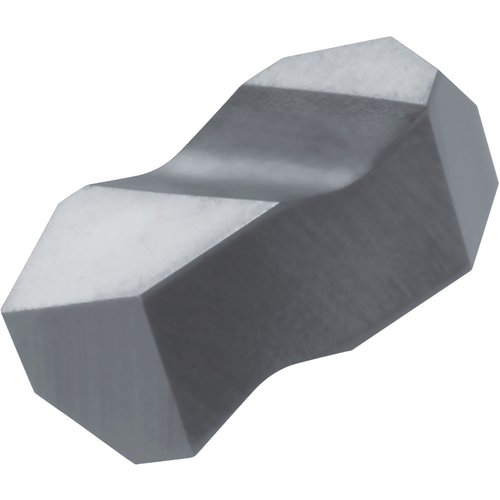

KCT 3R TN60 Grade Uncoated Cermet, Indexable Threading Insert
| Thread Standard | Metric | UN | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | External 1.5 mm - 4 mm | Internal 2.25 mm - 5 mm | Application | External Threading | Internal Threading |
| Threads per Inch (TPI) | External 6-20 | Internal 5-12 | Applicable Material | | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.007″ | Number of Teeth | 2 |
| Insert Thickness (S) | 0.344″ | Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 3 | Series/List # | CERA |
| Grade | TN60 | Mounting Style | Clamp |
| Coating | | TiCN | NbC | | Measurement Type | | Inch | Metric | |
| Cutting Edge Material | Cermet | Insert Style | KCT |
| Cutting Position | Internal & External | Coating Process | Uncoated |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.250
