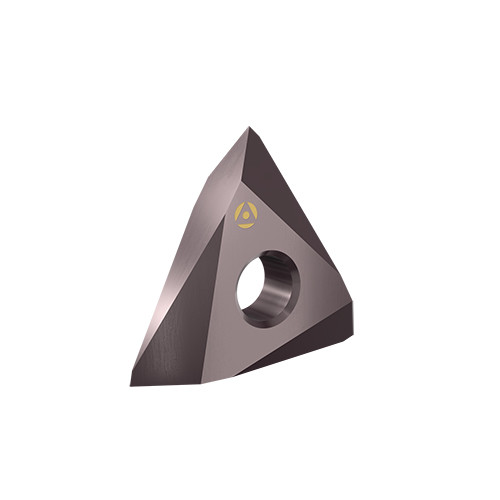

TNMA 43 NV 55' WW AC50C
| Threads per Inch (TPI) | 0 | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.006″ | Application | | Int Ext Threading On Edge | |
| Insert Thickness (S) | 0.189″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Width (CW) | 0″ | Threads per Inch Maximum (TPIX) | 24 |
| Inscribed Circle Diameter (IC) | 1/2″ | Threads per Inch Minimum (TPIN) | 5 |
| Grade | AC50C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | 55° Partial Whitworth Profile |
Product Features
| Family Description | Internal and External FloEdge TNMA Style Threading Inserts with 55° Partial Profile | Country of Origin | USA |
Shipping Info
Package Weight
0.001
