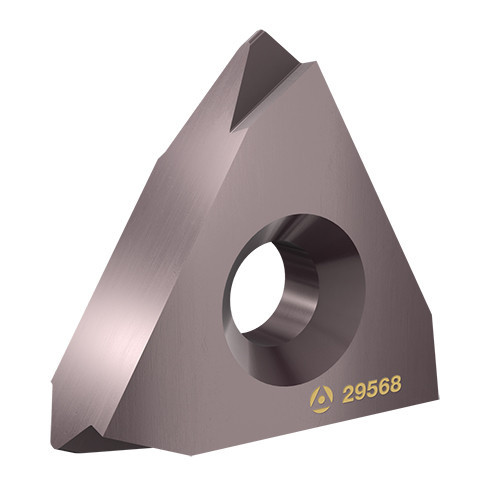

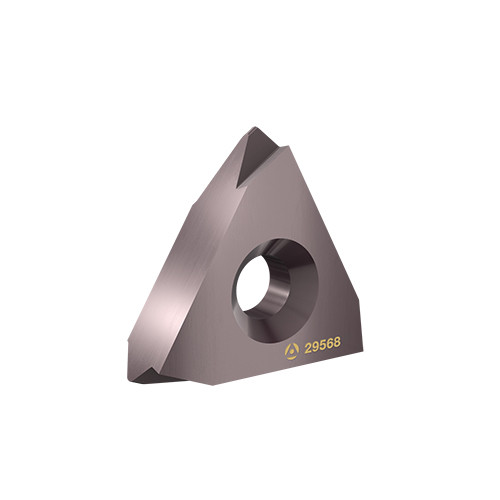

TNMC 55 H903 EXT AC50F
| Threads per Inch (TPI) | 3.5 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.03″ | Application | | Int Ext Threading On Edge | Int Threading Laydown | |
| Insert Thickness (S) | 0.312″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Width (CW) | 0″ | Threads per Inch Maximum (TPIX) | 0 |
| Inscribed Circle Diameter (IC) | 5/8″ | Threads per Inch Minimum (TPIN) | 0 |
| Grade | AC50F | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | API Hughes H90 |
Product Features
| Family Description | External FloEdge TNMC Style Threading Inserts with Hughes Profile | Country of Origin | USA |
Shipping Info
Package Weight
0.001
